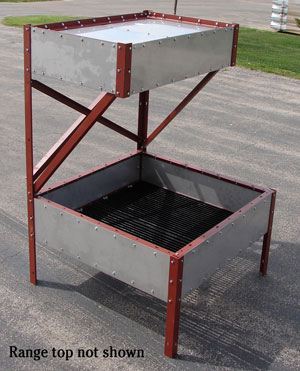

The stove simulator assembly consists of 1/4″ thick prime painted angles and 12 gauge stainless steel panels, bolted together with 3/8″ diameter bolts through pre-punched holes for ease of assembly. The prime painted 19W4 x 1 1/2″ x 3/16″ bar grate is designed to hold class “A” materials 1′-4″ above the floor surface. Dimensions for this prop are approximately 4′-5 1/2″ x 4′-5 1/2″ x 6′-7″ tall, resembling a commercial grade stove. The overhead hood of this unit is 2′-11″ x 4′-5 1/2″, and is enclosed by stainless steel panels. A sliding/removable stainless steel range top with large ventilation holes is provided. The range top helps to limit the number of pallets trainees can place in the unit by covering approximately half of the unit.
