Product Details

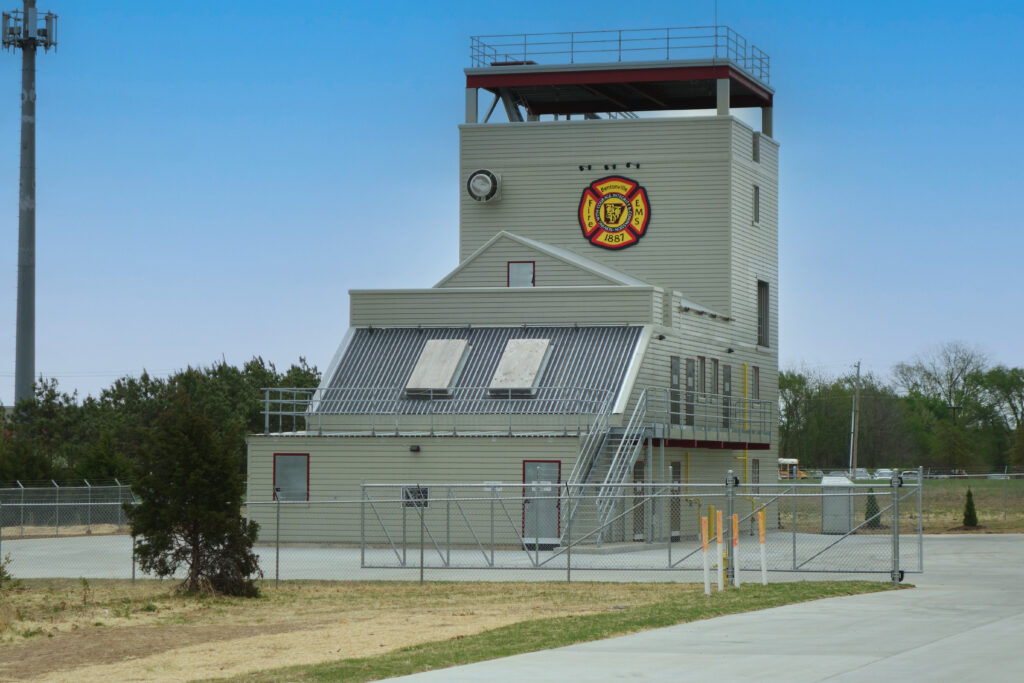

Training Tower
Dimensions 25'L x 22'W x 40'H
Roof Flat
Roof Live Load 100 PSF
Wind Load Per Local Codes
Deck Live Load 100 PSF
  • Parapet Roof Guard with Chained Opening
  • Interior “U” Shaped Stairs to 2nd, 3rd & 4th Floors
  • Interior Fixed Ladder, 4th Floor to Roof Hatch
  • (3) 3’x7′ Exterior Steel Doors
  • (7) 3’x4′ Window Openings with Steel Shutters
  • (1) 4’x4′ Roof Chop-Out Curb
  • (1) 2’6″x4’6″ Bilco Roof Hatch
Burn Room Annex
Dimensions 14'L x 22'W x 10'H
Roof 1/2" in 12" Single Pitch
Roof Live Load 100 PSF
Wind Load Per Local Codes
  • (1) 3’x7′ Exterior Steel Door
  • (1) 3’x7′ Interior Steel Door
  • (2) 3’x4′ Window Openings with Steel Shutters
  • (1) Westec® Insulation System
  • (1) Scout Temperature Monitoring System
Residential Section
Dimensions 33'11"L x 22'W x 27'3"H
Roof 16° Gable and Flat
Roof Live Load 100 PSF
Wind Load Per Local Codes
Deck Live Load 100 PSF
  • Parapet Roof Guard with Chained Opening
    Interior “L” Shaped Stairs to 2nd Floor
  • Roof Ladder Fender Brackets
  • (7) 3’x7′ Exterior Steel Doors
  • (11) 3’x7′ Interior Steel Doors
  • (12) 3’x4′ Window Openings with Steel Shutters
  • (2) 3’x3′ Hinged Gable Louvers
  • (2) 4’x4′ Roof Chop-Out Curbs
  • (1) 2nd Floor Burn Room
  • (1) Burn Area in Attic
  • (1) Westec® Insulation System
  • (1) Scout Temperature Monitoring System
Land Area Requirements
Basic building site 1.00 acre
Drafting pit 0.20 acre
Vehicle extrication pad 0.20 acre
Rail car spill 0.60 acre
Tank truck spill/roll-over 0.20 acre
Flammable liquid pond 0.10 acre
Electric transformer pad 0.10 acre
Aircraft rescue pad 0.70 acre
Classroom building 0.30 acre
Garage 0.30 acre

Additional allowances should be made for parking, retention ponds, or equipment storage.

Land area requirements vary slightly for different tower models. Please contact us for requirements on your specific project.

Hatches

Roof Hatch

Fire Facilities offers several color options, including nine durable, prefinished trim colors and four wall colors. The paint finish is multi-coated for long life. A 30/25-year paint warranty is standard with all Fire Facilities training structures.

Note: Colors shown are screen samples, colors vary on actual panel material. For a steel color sample, please complete the Request Form.

Wall Colors
Slate Gray
Iced White
Cream Beige
Classic Beige
Trim Colors
Patrician Bronze
Matte Black
Orange
Desert Tan
Continental Brown
Royal Blue
Cedar Red
Polar Blue
Evergreen
Iced White
Garnet
