The Firefighter

Print

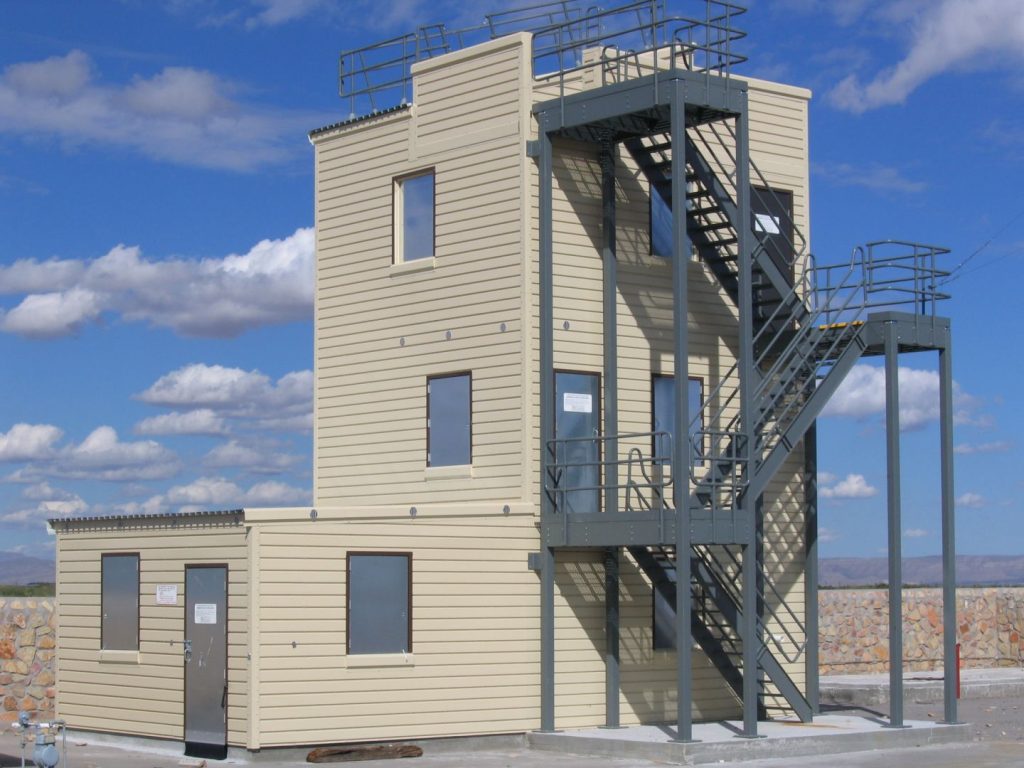

The Firefighter fire training tower’s design is similar to The Probie but offers an additional story for enhanced training. This three-and-a-half-story training structure with five working deck levels includes a burn room with two exits, interior stairs, fixed ladder, and a roof-mounted chop-out curb.

Request More Information
Product Details
Training Tower
Dimensions 22'L x 16'W x 34'H
Roof 16° Single Pitch
Roof Live Load 100 PSF
Wind Load Per Local Codes
Deck Live Load 100 PSF
  • Interior Decks: 2nd, 3rd, and Attic
  • Interior Stair to 3rd Floor
  • Interior Fixed Ladder, 3rd Floor to Attic
  • (1) 3’x7′ Exterior Steel Door
  • (1) 3’x7′ Interior Steel Door
  • (8) 3’x4′ Window Openings with Steel Shutters
  • (1) 2-1/2’x3′ Window Opening with Steel Shutters
  • (1) 4’x4′ Roof Chop-Out Curb
Burn Room Annex
Dimensions 14'L x 16'W x 9'H
Roof 1/2" in 12" Single Pitch
Roof Live Load 100 PSF
Wind Load Per Local Codes
  • (1) 3’x7′ Exterior Steel Door
  • (3) 3’x4′ Window Openings with Steel Shutters
  • (1) Westec® Insulation System
  • (1) Scout Temperature Monitoring System
Land Area Requirements
Basic building site 1.00 acre
Drafting pit 0.20 acre
Vehicle extrication pad 0.20 acre
Rail car spill 0.60 acre
Tank truck spill/roll-over 0.20 acre
Flammable liquid pond 0.10 acre
Electric transformer pad 0.10 acre
Aircraft rescue pad 0.70 acre
Classroom building 0.30 acre
Garage 0.30 acre

Additional allowances should be made for parking, retention ponds, or equipment storage.

Land area requirements vary slightly for different tower models. Please contact us for requirements on your specific project.

Fire Facilities offers several color options, including nine durable, prefinished trim colors and four wall colors. The paint finish is multi-coated for long life. A 30/25-year paint warranty is standard with all Fire Facilities training structures.

Note: Colors shown are screen samples, colors vary on actual panel material. For a steel color sample, please complete the Request Form.

Wall Colors
Slate Gray
Iced White
Cream Beige
Classic Beige
Trim Colors
Patrician Bronze
Matte Black
Orange
Desert Tan
Continental Brown
Royal Blue
Cedar Red
Polar Blue
Evergreen
Iced White
Garnet
Training Tower
Dimensions 22'L x 16'W x 34'H
Roof 16° Single Pitch
Roof Live Load 100 PSF
Wind Load Per Local Codes
Deck Live Load 100 PSF
  • Interior Decks: 2nd, 3rd, and Attic
  • Interior Stair to 3rd Floor
  • Interior Fixed Ladder, 3rd Floor to Attic
  • (1) 3’x7′ Exterior Steel Door
  • (1) 3’x7′ Interior Steel Door
  • (8) 3’x4′ Window Openings with Steel Shutters
  • (1) 2-1/2’x3′ Window Opening with Steel Shutters
  • (1) 4’x4′ Roof Chop-Out Curb
Burn Room Annex
Dimensions 14'L x 16'W x 9'H
Roof 1/2" in 12" Single Pitch
Roof Live Load 100 PSF
Wind Load Per Local Codes
  • (1) 3’x7′ Exterior Steel Door
  • (3) 3’x4′ Window Openings with Steel Shutters
  • (1) Westec® Insulation System
  • (1) Scout Temperature Monitoring System
Land Area Requirements
Basic building site 1.00 acre
Drafting pit 0.20 acre
Vehicle extrication pad 0.20 acre
Rail car spill 0.60 acre
Tank truck spill/roll-over 0.20 acre
Flammable liquid pond 0.10 acre
Electric transformer pad 0.10 acre
Aircraft rescue pad 0.70 acre
Classroom building 0.30 acre
Garage 0.30 acre

Additional allowances should be made for parking, retention ponds, or equipment storage.

Land area requirements vary slightly for different tower models. Please contact us for requirements on your specific project.

Fire Facilities offers several color options, including nine durable, prefinished trim colors and four wall colors. The paint finish is multi-coated for long life. A 30/25-year paint warranty is standard with all Fire Facilities training structures.

Note: Colors shown are screen samples, colors vary on actual panel material. For a steel color sample, please complete the Request Form.

Wall Colors
Slate Gray
Iced White
Cream Beige
Classic Beige
Trim Colors
Patrician Bronze
Matte Black
Orange
Desert Tan
Continental Brown
Royal Blue
Cedar Red
Polar Blue
Evergreen
Iced White
Garnet

The Firefighter

The Firefighter fire training tower’s design is similar to The Probie but offers an additional story for enhanced training. This three-and-a-half-story training structure with five working deck levels includes a burn room with two exits, interior stairs, fixed ladder, and a roof-mounted chop-out curb.

Training Tower
Dimensions 22'L x 16'W x 34'H
Roof 16° Single Pitch
Roof Live Load 100 PSF
Wind Load Per Local Codes
Deck Live Load 100 PSF
  • Interior Decks: 2nd, 3rd, and Attic
  • Interior Stair to 3rd Floor
  • Interior Fixed Ladder, 3rd Floor to Attic
  • (1) 3’x7′ Exterior Steel Door
  • (1) 3’x7′ Interior Steel Door
  • (8) 3’x4′ Window Openings with Steel Shutters
  • (1) 2-1/2’x3′ Window Opening with Steel Shutters
  • (1) 4’x4′ Roof Chop-Out Curb
Burn Room Annex
Dimensions 14'L x 16'W x 9'H
Roof 1/2" in 12" Single Pitch
Roof Live Load 100 PSF
Wind Load Per Local Codes
  • (1) 3’x7′ Exterior Steel Door
  • (3) 3’x4′ Window Openings with Steel Shutters
  • (1) Westec® Insulation System
  • (1) Scout Temperature Monitoring System
Land Area Requirements
Basic building site 1.00 acre
Drafting pit 0.20 acre
Vehicle extrication pad 0.20 acre
Rail car spill 0.60 acre
Tank truck spill/roll-over 0.20 acre
Flammable liquid pond 0.10 acre
Electric transformer pad 0.10 acre
Aircraft rescue pad 0.70 acre
Classroom building 0.30 acre
Garage 0.30 acre

Additional allowances should be made for parking, retention ponds, or equipment storage.

Land area requirements vary slightly for different tower models. Please contact us for requirements on your specific project.
