The Hall Crawler

Print

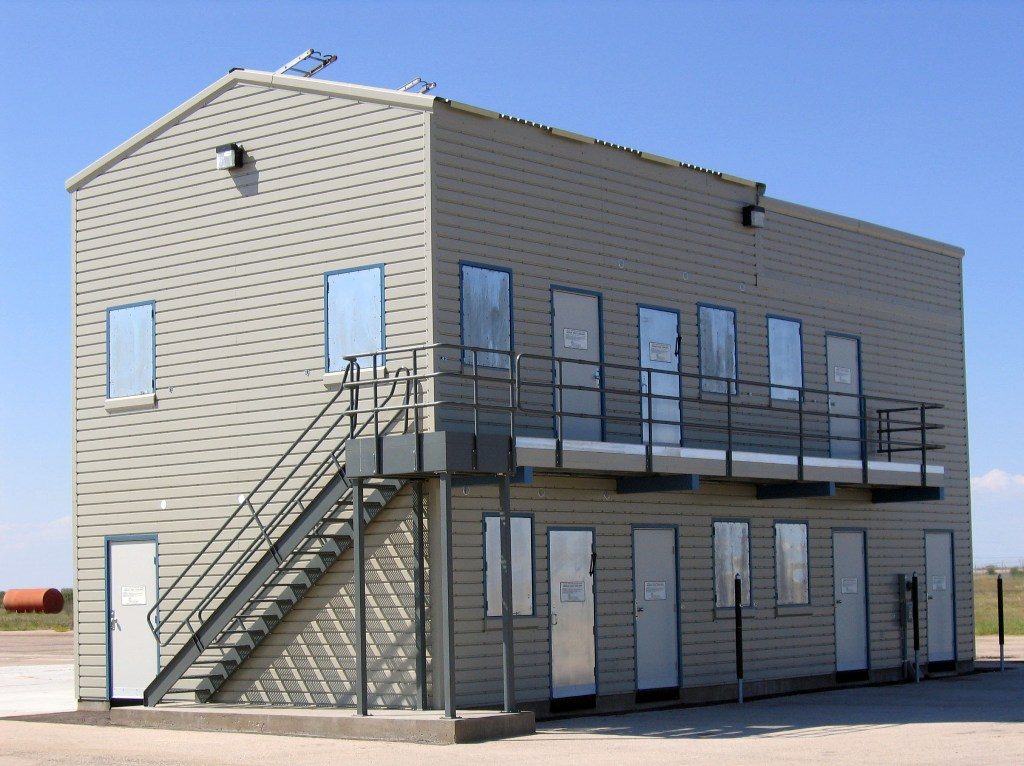

The Hall Crawler is a two-story live fire training building with access to the roof. Exterior stairs on the second floor lead to a balcony accessing three interior rooms, providing an apartment building or hotel/motel-like rescue training opportunity for your fire department or emergency services department. The Hall Crawler’s two burn rooms and one corner burn area allow fire departments maximum flexibility in the training building.

Request More Information
Product Details
Fire Training Building
Dimensions 46'L x 22'W x 20'H
Roof Flat
Roof Live Load 100 PSF
Wind Load Per Local Codes
Deck Live Load 100 PSF
  • Parapet Roof Guard with Chained Opening
  • Exterior 2nd Floor Cantilevered Balcony 39′ x 4′
  • Exterior Stair to 2nd Floor
  • Interior “U” Shape Stair to 2nd Floor
  • Interior Fixed Ladder, 2nd Floor to Roof
  • (8) 3’x7′ Exterior Steel Doors
  • (1) 6′ x 7′ Exterior Steel Door
  • (13) 3’x7′ Interior Steel Doors
  • (14) 3’x4′ Window Openings with Steel Shutters
  • (1) 4′ x 4′ Roof Chop-Out Curb
  • (1) Roof Hatch
  • (4) 1st Floor Rooms (1 Burn Room & 1 Corner Burn Area)
  • (5) 2nd Floor Rooms (1 Burn Room)
  • (1) Westec® Insulation System
  • (1) Scout Temperature Monitoring System
Land Area Requirements
Basic building site 1.00 acre
Drafting pit 0.20 acre
Vehicle extrication pad 0.20 acre
Rail car spill 0.60 acre
Tank truck spill/roll-over 0.20 acre
Flammable liquid pond 0.10 acre
Electric transformer pad 0.10 acre
Aircraft rescue pad 0.70 acre
Classroom building 0.30 acre
Garage 0.30 acre

Additional allowances should be made for parking, retention ponds, or equipment storage.

Land area requirements vary slightly for different tower models. Please contact us for requirements on your specific project.

Fire Facilities offers several color options, including nine durable, prefinished trim colors and four wall colors. The paint finish is multi-coated for long life. A 30/25-year paint warranty is standard with all Fire Facilities training structures.

Note: Colors shown are screen samples, colors vary on actual panel material. For a steel color sample, please complete the Request Form.

Wall Colors
Slate Gray
Iced White
Cream Beige
Classic Beige
Trim Colors
Patrician Bronze
Matte Black
Orange
Desert Tan
Continental Brown
Royal Blue
Cedar Red
Polar Blue
Evergreen
Iced White
Garnet
Fire Training Building
Dimensions 46'L x 22'W x 20'H
Roof Flat
Roof Live Load 100 PSF
Wind Load Per Local Codes
Deck Live Load 100 PSF
  • Parapet Roof Guard with Chained Opening
  • Exterior 2nd Floor Cantilevered Balcony 39′ x 4′
  • Exterior Stair to 2nd Floor
  • Interior “U” Shape Stair to 2nd Floor
  • Interior Fixed Ladder, 2nd Floor to Roof
  • (8) 3’x7′ Exterior Steel Doors
  • (1) 6′ x 7′ Exterior Steel Door
  • (13) 3’x7′ Interior Steel Doors
  • (14) 3’x4′ Window Openings with Steel Shutters
  • (1) 4′ x 4′ Roof Chop-Out Curb
  • (1) Roof Hatch
  • (4) 1st Floor Rooms (1 Burn Room & 1 Corner Burn Area)
  • (5) 2nd Floor Rooms (1 Burn Room)
  • (1) Westec® Insulation System
  • (1) Scout Temperature Monitoring System
Land Area Requirements
Basic building site 1.00 acre
Drafting pit 0.20 acre
Vehicle extrication pad 0.20 acre
Rail car spill 0.60 acre
Tank truck spill/roll-over 0.20 acre
Flammable liquid pond 0.10 acre
Electric transformer pad 0.10 acre
Aircraft rescue pad 0.70 acre
Classroom building 0.30 acre
Garage 0.30 acre

Additional allowances should be made for parking, retention ponds, or equipment storage.

Land area requirements vary slightly for different tower models. Please contact us for requirements on your specific project.

Fire Facilities offers several color options, including nine durable, prefinished trim colors and four wall colors. The paint finish is multi-coated for long life. A 30/25-year paint warranty is standard with all Fire Facilities training structures.

Note: Colors shown are screen samples, colors vary on actual panel material. For a steel color sample, please complete the Request Form.

Wall Colors
Slate Gray
Iced White
Cream Beige
Classic Beige
Trim Colors
Patrician Bronze
Matte Black
Orange
Desert Tan
Continental Brown
Royal Blue
Cedar Red
Polar Blue
Evergreen
Iced White
Garnet

The Hall Crawler

The Hall Crawler is a two-story live fire training building with access to the roof. Exterior stairs on the second floor lead to a balcony accessing three interior rooms, providing an apartment building or hotel/motel-like rescue training opportunity for your fire department or emergency services department. The Hall Crawler’s two burn rooms and one corner burn area allow fire departments maximum flexibility in the training building.

Fire Training Building
Dimensions 46'L x 22'W x 20'H
Roof Flat
Roof Live Load 100 PSF
Wind Load Per Local Codes
Deck Live Load 100 PSF
  • Parapet Roof Guard with Chained Opening
  • Exterior 2nd Floor Cantilevered Balcony 39′ x 4′
  • Exterior Stair to 2nd Floor
  • Interior “U” Shape Stair to 2nd Floor
  • Interior Fixed Ladder, 2nd Floor to Roof
  • (8) 3’x7′ Exterior Steel Doors
  • (1) 6′ x 7′ Exterior Steel Door
  • (13) 3’x7′ Interior Steel Doors
  • (14) 3’x4′ Window Openings with Steel Shutters
  • (1) 4′ x 4′ Roof Chop-Out Curb
  • (1) Roof Hatch
  • (4) 1st Floor Rooms (1 Burn Room & 1 Corner Burn Area)
  • (5) 2nd Floor Rooms (1 Burn Room)
  • (1) Westec® Insulation System
  • (1) Scout Temperature Monitoring System
Land Area Requirements
Basic building site 1.00 acre
Drafting pit 0.20 acre
Vehicle extrication pad 0.20 acre
Rail car spill 0.60 acre
Tank truck spill/roll-over 0.20 acre
Flammable liquid pond 0.10 acre
Electric transformer pad 0.10 acre
Aircraft rescue pad 0.70 acre
Classroom building 0.30 acre
Garage 0.30 acre

Additional allowances should be made for parking, retention ponds, or equipment storage.

Land area requirements vary slightly for different tower models. Please contact us for requirements on your specific project.
