Product Details

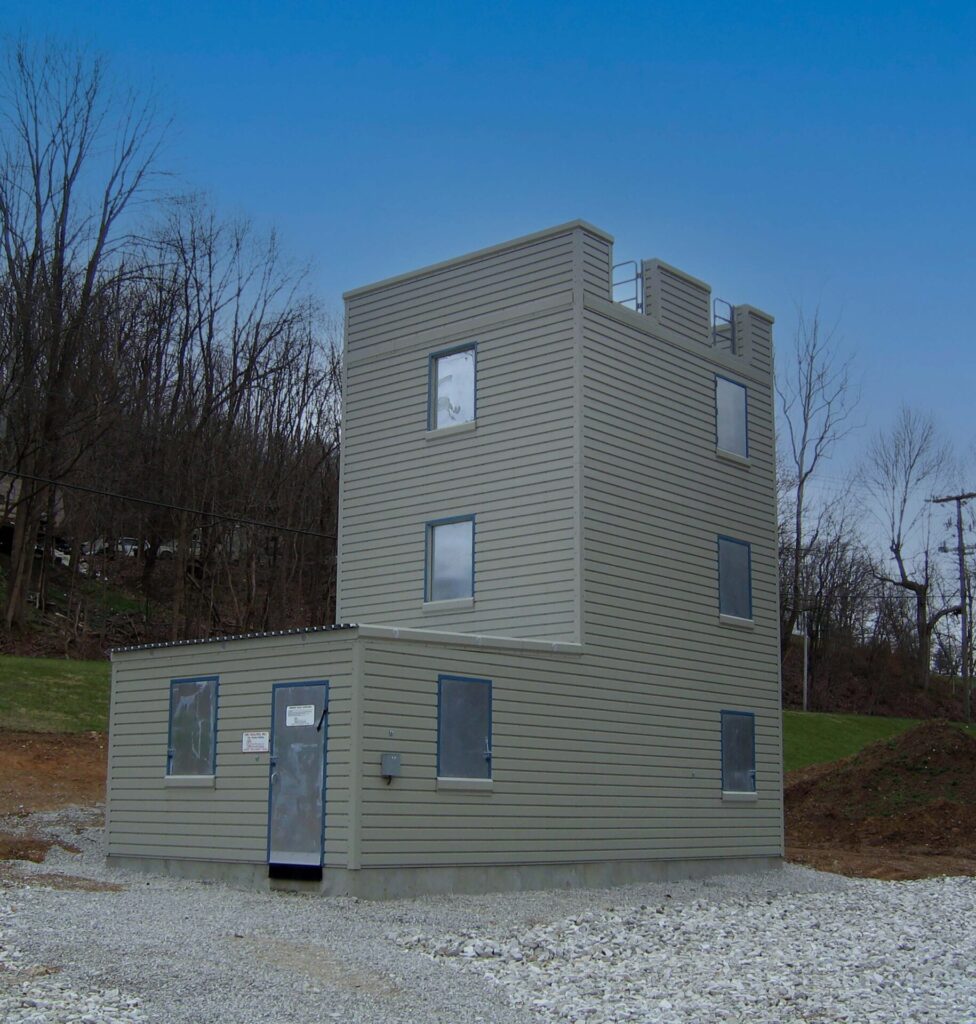

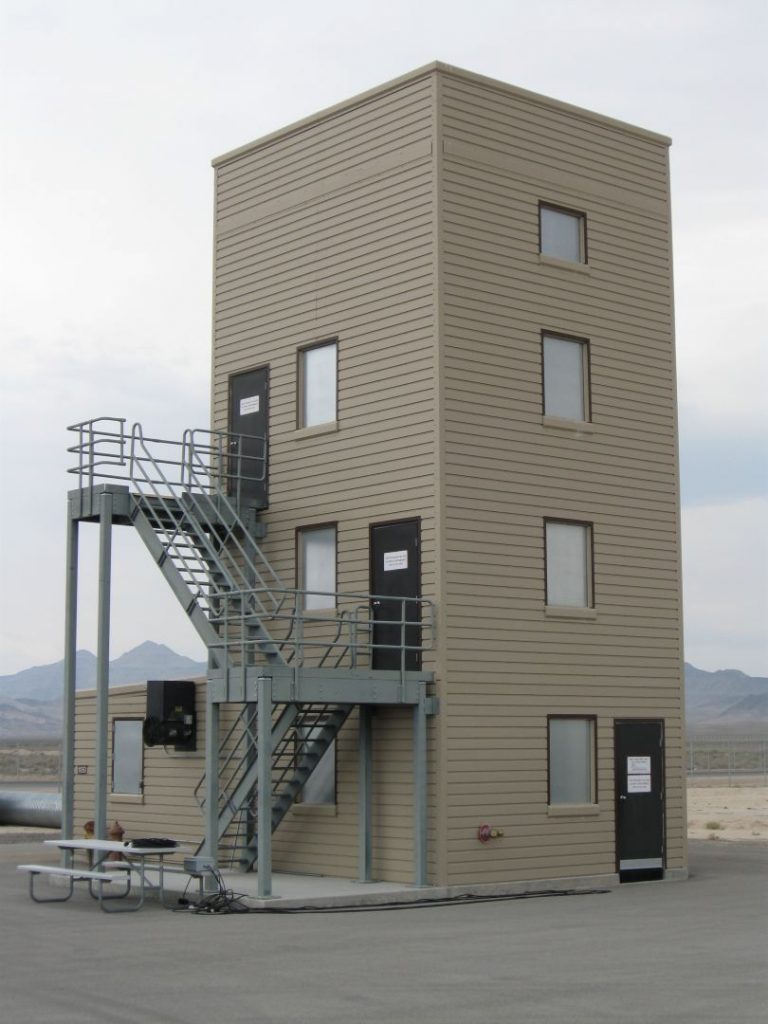

Fire Training Building
Dimensions 22'L x 16'W x 34'H
Roof Flat
Roof Live Load 100 PSF
Wind Load Per Local Codes
Deck Live Load 100 PSF
  • Parapet Roof Guard with Chained Opening
  • Interior Stair to 3rd Floor
  • Interior Fixed Ladder, 3rd Floor to Attic
  • (1) 3’x7′ Exterior Steel Door
  • (1) 3’x7′ Interior Steel Door
  • (8) 3’x4′ Window Openings with Steel Shutters
  • (2) 2-1/2’x3′ Window Openings with Steel Shutters
  • (1) 4’x4′ Roof Chop-Out Curb
  • (1) Roof Hatch
Burn Room Annex
Dimensions 14'L x 16'W x 9'H
Roof 1/2" in 12" Single Pitch
Roof Live Load 100 PSF
Wind Load Per Local Codes
  • (1) 3’x7′ Exterior Steel Door
  • (3) 3’x4′ Window Openings with Steel Shutters
  • (1) Westec® Insulation System
  • (1) Scout Temperature Monitoring System
Land Area Requirements
Basic building site 1.00 acre
Drafting pit 0.20 acre
Vehicle extrication pad 0.20 acre
Rail car spill 0.60 acre
Tank truck spill/roll-over 0.20 acre
Flammable liquid pond 0.10 acre
Electric transformer pad 0.10 acre
Aircraft rescue pad 0.70 acre
Classroom building 0.30 acre
Garage 0.30 acre

Additional allowances should be made for parking, retention ponds, or equipment storage.

Land area requirements vary slightly for different tower models. Please contact us for requirements on your specific project.

Hatches

Roof Hatch

Fire Facilities offers several color options, including nine durable, prefinished trim colors and four wall colors. The paint finish is multi-coated for long life. A 30/25-year paint warranty is standard with all Fire Facilities training structures.

Note: Colors shown are screen samples, colors vary on actual panel material. For a steel color sample, please complete the Request Form.

Wall Colors
Slate Gray
Iced White
Cream Beige
Classic Beige
Trim Colors
Patrician Bronze
Matte Black
Orange
Desert Tan
Continental Brown
Royal Blue
Cedar Red
Polar Blue
Evergreen
Iced White
Garnet
Fire Training Building
Dimensions 22'L x 16'W x 34'H
Roof Flat
Roof Live Load 100 PSF
Wind Load Per Local Codes
Deck Live Load 100 PSF
  • Parapet Roof Guard with Chained Opening
  • Interior Stair to 3rd Floor
  • Interior Fixed Ladder, 3rd Floor to Attic
  • (1) 3’x7′ Exterior Steel Door
  • (1) 3’x7′ Interior Steel Door
  • (8) 3’x4′ Window Openings with Steel Shutters
  • (2) 2-1/2’x3′ Window Openings with Steel Shutters
  • (1) 4’x4′ Roof Chop-Out Curb
  • (1) Roof Hatch
Burn Room Annex
Dimensions 14'L x 16'W x 9'H
Roof 1/2" in 12" Single Pitch
Roof Live Load 100 PSF
Wind Load Per Local Codes
  • (1) 3’x7′ Exterior Steel Door
  • (3) 3’x4′ Window Openings with Steel Shutters
  • (1) Westec® Insulation System
  • (1) Scout Temperature Monitoring System
Land Area Requirements
Basic building site 1.00 acre
Drafting pit 0.20 acre
Vehicle extrication pad 0.20 acre
Rail car spill 0.60 acre
Tank truck spill/roll-over 0.20 acre
Flammable liquid pond 0.10 acre
Electric transformer pad 0.10 acre
Aircraft rescue pad 0.70 acre
Classroom building 0.30 acre
Garage 0.30 acre

Additional allowances should be made for parking, retention ponds, or equipment storage.

Land area requirements vary slightly for different tower models. Please contact us for requirements on your specific project.

Hatches

Roof Hatch

Fire Facilities offers several color options, including nine durable, prefinished trim colors and four wall colors. The paint finish is multi-coated for long life. A 30/25-year paint warranty is standard with all Fire Facilities training structures.

Note: Colors shown are screen samples, colors vary on actual panel material. For a steel color sample, please complete the Request Form.

Wall Colors
Slate Gray
Iced White
Cream Beige
Classic Beige
Trim Colors
Patrician Bronze
Matte Black
Orange
Desert Tan
Continental Brown
Royal Blue
Cedar Red
Polar Blue
Evergreen
Iced White
Garnet
